ATTENTION: These indications are only for some models which provide these different methods of use
This technical sheet contains examples of the various methods of use of the vehicle (ignition possible). Some modes must be activated in order to proceed with the diagnosis of a system.
"INACTIVE MODE"

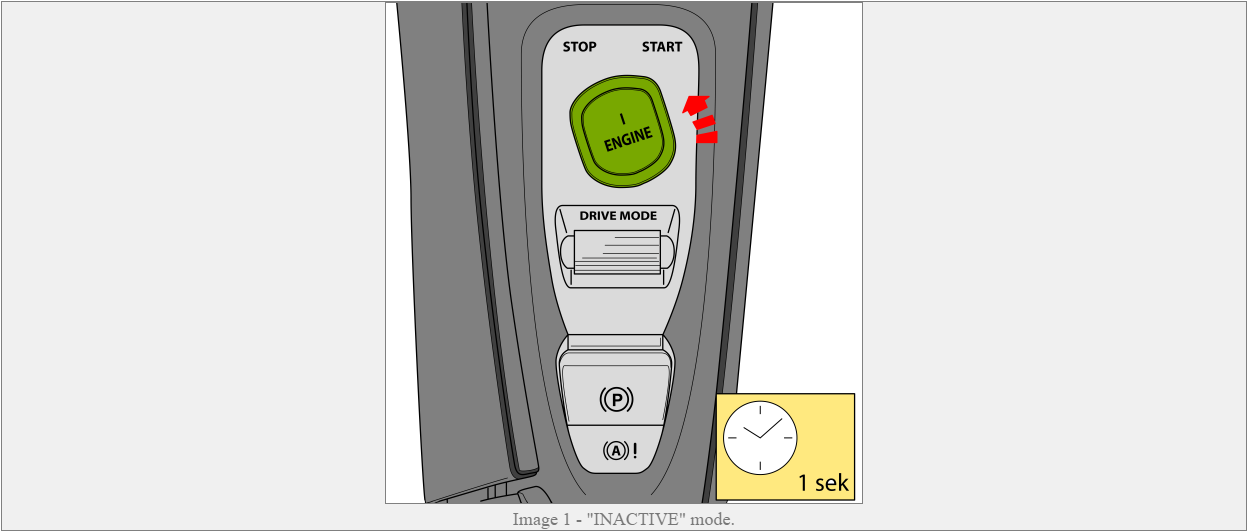

- To activate this mode, turn the ignition switch to "STOP" for at least 1 second; (Image 1)
- In this mode, access to the vehicle functions will be limited;
"COMFORT MODE"

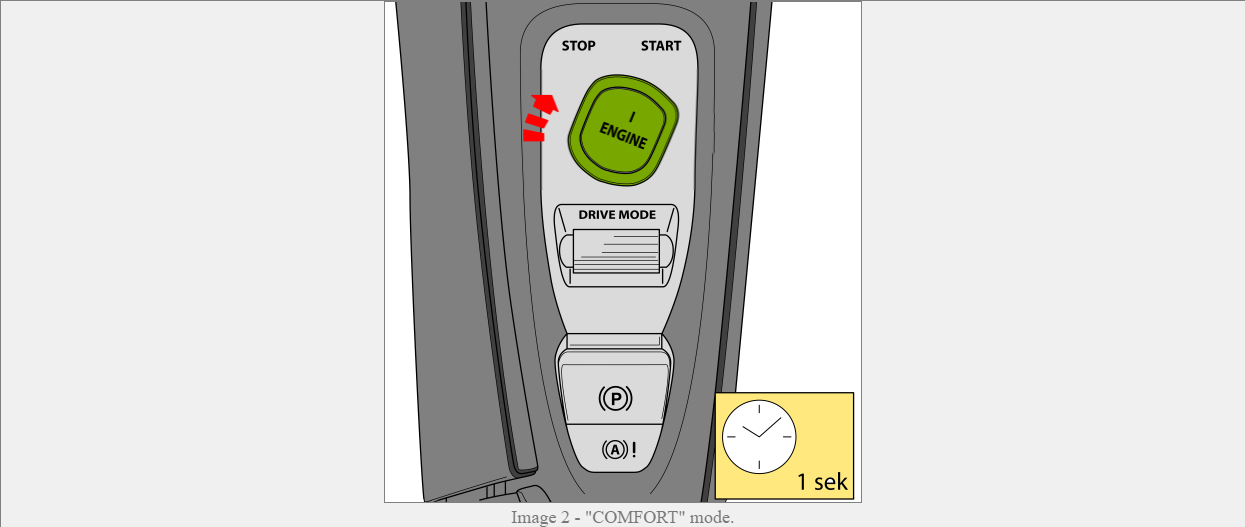

- To activate this mode, turn the ignition switch to "START" for at least 1 second; (Image 2)
- In this mode, the comfort functions (accessories) can be accessed;
"ACTIVE MODE"

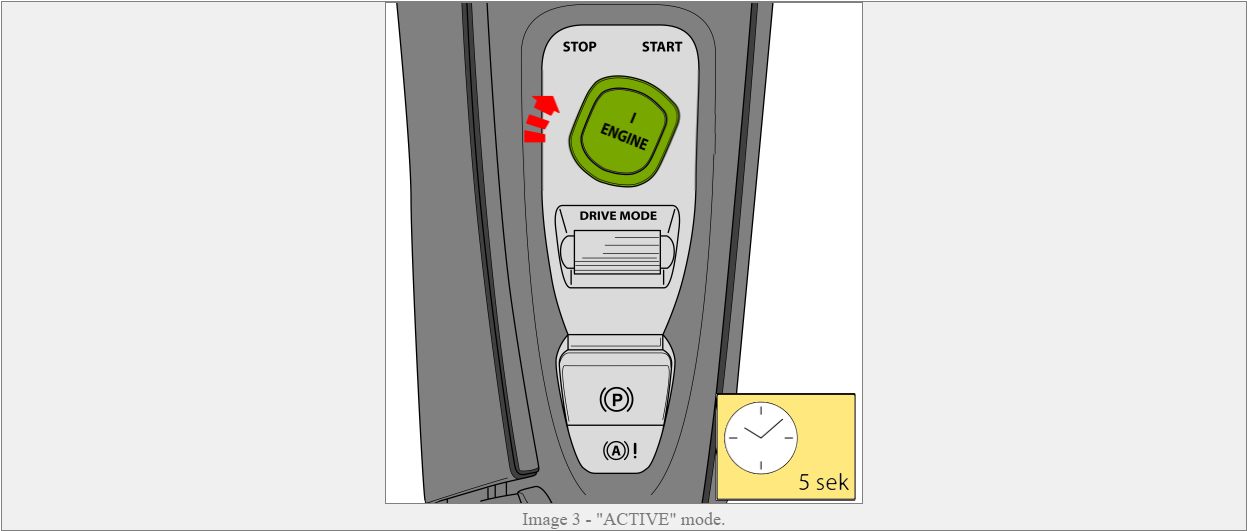

- To activate this mode, turn the ignition switch to "START" for at least 5 seconds (Without pressing the brake pedal); (Image 3)
- In this mode, functionality is complete (Instrument panel on);
ATTENTION: The diagnosis of the control unit must be carried out with the vehicle's method of use on "ACTIVE"
"DRIVE MODE"

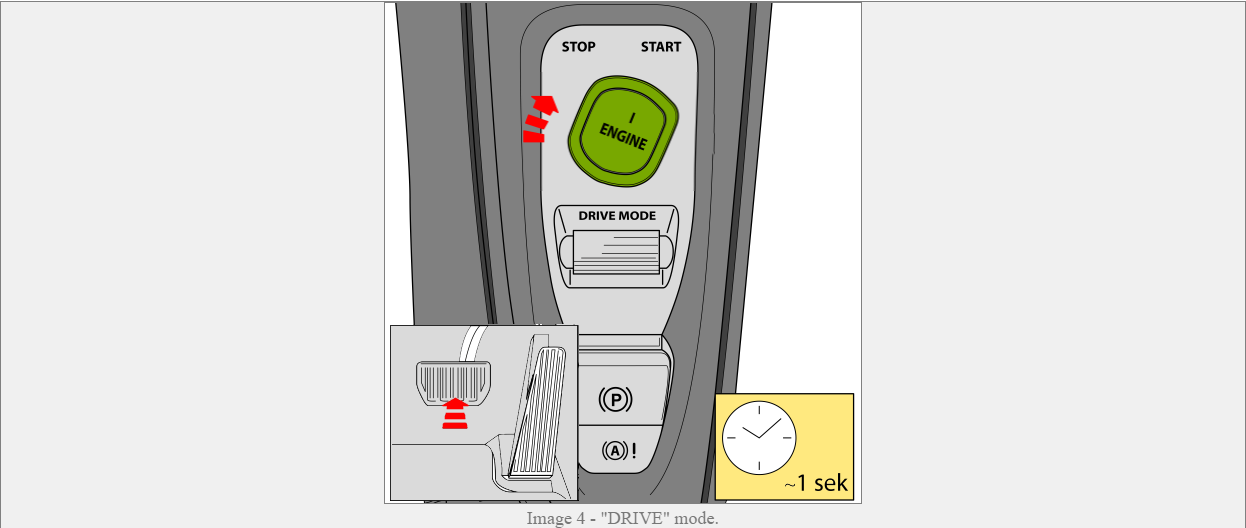

- To activate the mode, turn the ignition switch to "START" and press the brake pedal for approximately one second; (Image 4)
- In this mode, all the functions are complete (Engine on)
WARNING: The makes and distinguishing signs of the vehicle manufacturers included in this document are only provided to inform the reader about the potential suitability of the said TEXA products to be used for the vehicles of the above-mentioned manufacturers. References to makes and models contained in this document are to be considered only as a rough guide.
