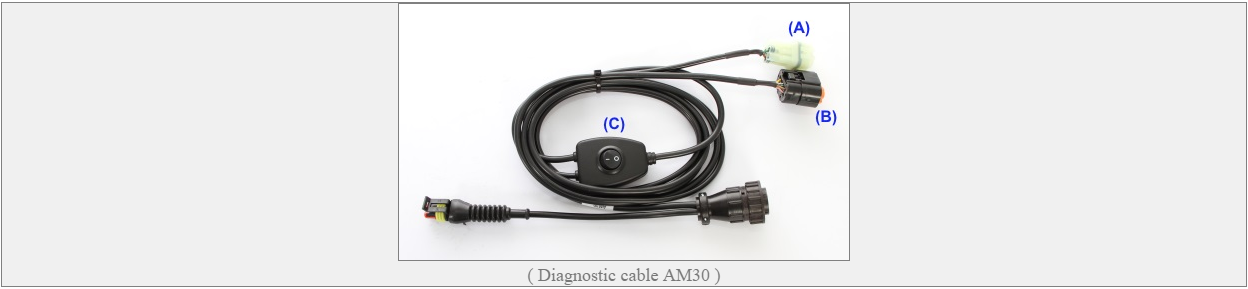

The series of engines equipped with a 6-pin diagnostic socket is  not compatible with the corresponding connector (A - colorless) of cable AM30.

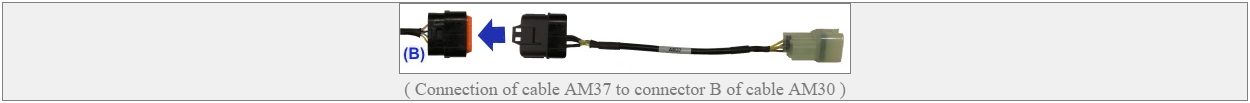

To carry out the diagnosis you must use terminal cable AM37, which must be connected between the engine socket and the orange connector (B) of the AM30 cable.

NOTE: The position of the "I/O" switch (C) on the AM30 does not affect the diagnosis.

WARNING: The makes and distinguishing signs of the vehicle manufacturers included in this document are only provided to inform the reader about the potential suitability of the said TEXA products to be used for the vehicles of the above-mentioned manufacturers. References to makes and models contained in this document are to be considered only as a rough guide.
